Siri metrik flange miniatur bola galas adalah sejenis galas yang digunakan secara meluas dalam jentera ketepatan, terutama yang sesuai untuk peralatan dengan ruang terhad dan keperluan prestasi tinggi. Galas tersebut biasanya dihasilkan dari bahan berkualiti tinggi untuk memastikan ketahanan dan kestabilan mereka. Reka bentuk bebibirnya menyediakan sokongan tambahan, memudahkan pemasangan, dan juga dapat mengurangkan anjakan galas semasa operasi. Ciri -ciri utama galas bola mini ini termasuk pekali geseran yang rendah, keupayaan kelajuan putaran yang tinggi dan kapasiti membawa beban yang sangat baik. Mereka sesuai untuk pelbagai aplikasi seperti alat kuasa, robot, pencetak dan motor kecil. Dari segi reka bentuk, siri metrik flange miniatur bola galas juga memberi perhatian kepada butiran dan biasanya tersedia dalam saiz dan konfigurasi yang berbeza untuk memenuhi keperluan peralatan yang berbeza. Galas biasanya pra-lubricated atau dimeteraikan.
Parameter Produk

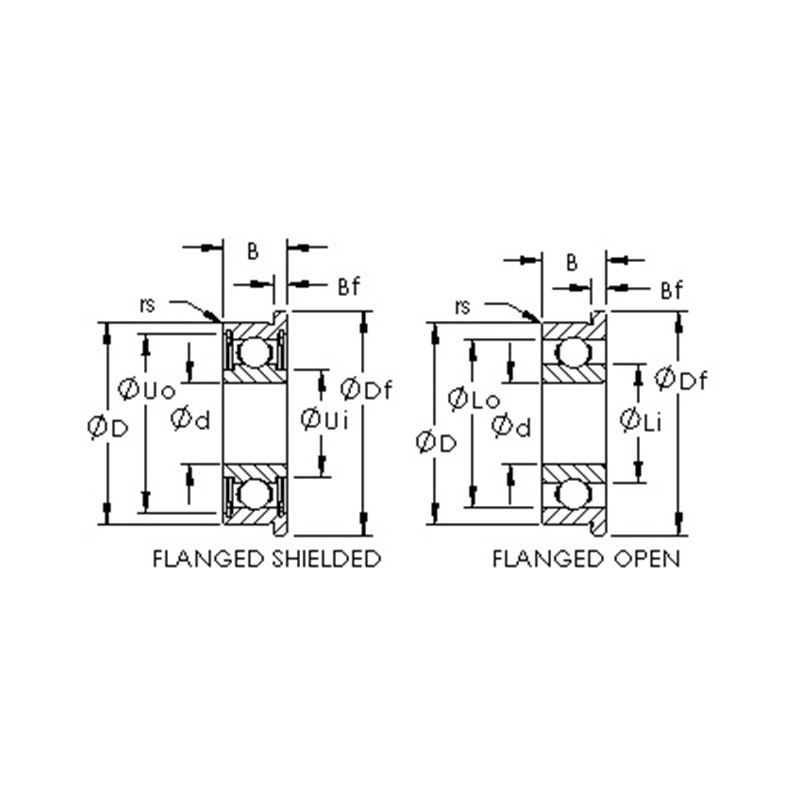

| Nombor produk | Jenis galas | Dimensi (mm） | Penilaian Beban Asas (N） | |||||
| d | D | B | Df | Bf | Penilaian Beban Dinamik (CR) | Penilaian Beban Statik (COR) | ||
| F691 | Buka galas bola flanged | 1 | 4 | 1.6 | 5 | 0.5 | 120 | 30 |
| MF41X | Buka galas bola flanged | 1.2 | 4 | 1.8 | 4.8 | 0.4 | 95 | 26 |
| F681X | Buka galas bola flanged | 1.5 | 4 | 1.2 | 5 | 0.4 | 95 | 26 |
| F681XZZ | Galas bola flanged tertutup | 1.5 | 4 | 2 | 5 | 0.6 | 95 | 26 |
| F691X | Buka galas bola flanged | 1.5 | 5 | 2 | 6.5 | 0.6 | 144 | 40 |
| F691XZZ | Galas bola flanged tertutup | 1.5 | 5 | 2.6 | 6.5 | 0.8 | 144 | 40 |
| F601X | Buka galas bola flanged | 1.5 | 6 | 2.5 | 7.5 | 0.6 | 281 | 79 |
| F601XZZ | Galas bola flanged tertutup | 1.5 | 6 | 3 | 7.5 | 0.8 | 281 | 79 |
| F682 | Buka galas bola flanged | 2 | 5 | 1.5 | 6.1 | 0.5 | 144 | 40 |
| F682 2RS | Galas bola flanged tertutup | 2 | 5 | 1.5 | 6.1 | 0.5 | 144 | 40 |
| F682ZZ | Galas bola flanged tertutup | 2 | 5 | 2.3 | 6.1 | 0.6 | 144 | 40 |
| MF52 | Buka galas bola flanged | 2 | 5 | 2 | 6.2 | 0.6 | 144 | 40 |
| MF52 2RS | Galas bola flanged tertutup | 2 | 5 | 2 | 6.2 | 0.6 | 144 | 40 |
| MF52ZZ | Galas bola flanged tertutup | 2 | 5 | 2.5 | 6.2 | 0.6 | 144 | 40 |
| F692 | Buka galas bola flanged | 2 | 6 | 2.3 | 7.5 | 0.6 | 281 | 79 |
| F692 2rs | Galas bola flanged tertutup | 2 | 6 | 3 | 7.5 | 0.8 | 281 | 79 |
| F692ZZ | Galas bola flanged tertutup | 2 | 6 | 3 | 7.5 | 0.8 | 281 | 79 |
| MF62 | Buka galas bola flanged | 2 | 6 | 2.5 | 7.2 | 0.6 | 281 | 79 |
| MF62 2RS | Galas bola flanged tertutup | 2 | 6 | 2.5 | 7.2 | 0.6 | 281 | 79 |
| MF62ZZ | Galas bola flanged tertutup | 2 | 6 | 2.5 | 7.2 | 0.6 | 281 | 79 |
| MF72 | Buka galas bola flanged | 2 | 7 | 2.5 | 8.2 | 0.6 | 328 | 103 |
| MF72 2RS | Galas bola flanged tertutup | 2 | 7 | 3 | 8.2 | 0.6 | 328 | 103 |
| MF72ZZ | Galas bola flanged tertutup | 2 | 7 | 3 | 8.2 | 0.6 | 328 | 103 |
| F602 | Buka galas bola flanged | 2 | 7 | 2.8 | 8.5 | 0.7 | 328 | 103 |
| F602 2RS | Galas bola flanged tertutup | 2 | 7 | 2.8 | 8.5 | 0.7 | 328 | 103 |
| F602ZZ | Galas bola flanged tertutup | 2 | 7 | 3.5 | 8.5 | 0.9 | 328 | 103 |
| F682X | Buka galas bola flanged | 2.5 | 6 | 1.8 | 7.1 | 0.5 | 178 | 59 |
| F682X 2RS | Galas bola flanged tertutup | 2.5 | 6 | 1.8 | 7.1 | 0.5 | 178 | 59 |
| F682XZZ | Galas bola flanged tertutup | 2.5 | 6 | 2.6 | 7.1 | 0.8 | 178 | 59 |
| F692X | Buka galas bola flanged | 2.5 | 7 | 2.5 | 8.5 | 0.7 | 328 | 103 |
| F692X 2RS | Galas bola flanged tertutup | 2.5 | 7 | 3.5 | 8.5 | 0.9 | 328 | 103 |
| F692XZZ | Galas bola flanged tertutup | 2.5 | 7 | 3.5 | 8.5 | 0.9 | 328 | 103 |
| MF82X | Buka galas bola flanged | 2.5 | 8 | 2.5 | 9.2 | 0.6 | 180 | 67 |
| MF82X 2RS | Galas bola flanged tertutup | 2.5 | 8 | 2.5 | 9.2 | 0.6 | 180 | 67 |
| MF82XZZ | Galas bola flanged tertutup | 2.5 | 8 | 2.5 | 9.2 | 0.6 | 180 | 67 |
| F602X | Buka galas bola flanged | 2.5 | 8 | 2.8 | 9.5 | 0.7 | 469 | 142 |
| F602X 2RS | Galas bola flanged tertutup | 2.5 | 8 | 4 | 9.5 | 0.9 | 469 | 142 |
| F602XZZ | Galas bola flanged tertutup | 2.5 | 8 | 4 | 9.5 | 0.9 | 469 | 142 |
| MF63 | Buka galas bola flanged | 3 | 6 | 2 | 7.2 | 0.6 | 178 | 59 |
| MF63 2RS | Galas bola flanged tertutup | 3 | 6 | 2 | 7.2 | 0.6 | 178 | 59 |
| MF63ZZ | Galas bola flanged tertutup | 3 | 6 | 2.5 | 7.2 | 0.6 | 178 | 59 |
| F683 | Buka galas bola flanged | 3 | 7 | 2 | 8.1 | 0.5 | 264 | 90 |
| F683 2rs | Galas bola flanged tertutup | 3 | 7 | 3 | 8.1 | 0.8 | 264 | 90 |
| F683zz | Galas bola flanged tertutup | 3 | 7 | 3 | 8.1 | 0.8 | 264 | 90 |
| MF83 | Buka galas bola flanged | 3 | 8 | 2.5 | 9.2 | 0.6 | 336 | 113 |
| MF83 2RS | Galas bola flanged tertutup | 3 | 8 | 2.5 | 9.2 | 0.6 | 336 | 113 |
| MF83ZZ | Galas bola flanged tertutup | 3 | 8 | 3 | 9.2 | 0.6 | 336 | 113 |
| F693 | Buka galas bola flanged | 3 | 8 | 3 | 9.5 | 0.7 | 474 | 114 |
| F693 2RS | Galas bola flanged tertutup | 3 | 8 | 4 | 9.5 | 0.9 | 474 | 144 |
| F693ZZ | Galas bola flanged tertutup | 3 | 8 | 4 | 9.5 | 0.9 | 474 | 144 |
| MF93 | Buka galas bola flanged | 3 | 9 | 2.5 | 10.2 | 0.6 | 485 | 151 |
| MF93 2R | Galas bola flanged tertutup | 3 | 9 | 2.5 | 10.2 | 0.6 | 485 | 151 |
| MF93ZZ | Galas bola flanged tertutup | 3 | 9 | 4 | 10.6 | 0.8 | 485 | 151 |
| F603 | Buka galas bola flanged | 3 | 9 | 3 | 10.5 | 0.7 | 230 | 151 |
| F603 2RS | Galas bola flanged tertutup | 3 | 9 | 5 | 10.5 | 0.7 | 230 | 151 |
| F603ZZ | Galas bola flanged tertutup | 3 | 9 | 5 | 10.5 | 1 | 230 | 151 |
| F623 | Buka galas bola flanged | 3 | 10 | 4 | 11.5 | 1 | 536 | 175 |
| F623 2RS | Galas bola flanged tertutup | 3 | 10 | 4 | 11.5 | 1 | 536 | 175 |
| F623ZZ | Galas bola flanged tertutup | 3 | 10 | 4 | 11.5 | 1 | 536 | 175 |
| MF74 | Buka galas bola flanged | 4 | 7 | 2 | 8.2 | 0.6 | 264 | 92 |
| MF74 2RS | Galas bola flanged tertutup | 4 | 7 | 2 | 8.2 | 0.6 | 264 | 92 |
| MF74ZZ | Galas bola flanged tertutup | 4 | 7 | 2.5 | 8.2 | 0.6 | 217 | 86 |
| MF84 | Buka galas bola flanged | 4 | 8 | 2 | 9.2 | 0.6 | 336 | 113 |
| MF84 2RS | Galas bola flanged tertutup | 4 | 8 | 2 | 9.2 | 0.6 | 336 | 113 |
| MF84ZZ | Galas bola flanged tertutup | 4 | 8 | 3 | 9.2 | 0.6 | 336 | 113 |
| F684 | Buka galas bola flanged | 4 | 9 | 2.5 | 10.3 | 0.6 | 545 | 182 |
| F684 2RS | Galas bola flanged tertutup | 4 | 9 | 4 | 10.3 | 1 | 545 | 182 |
| F684zz | Galas bola flanged tertutup | 4 | 9 | 4 | 10.3 | 1 | 545 | 182 |
| MF104 | Buka galas bola flanged | 4 | 10 | 3 | 11.2 | 0.6 | 604 | 218 |
| MF104 2RS | Galas bola flanged tertutup | 4 | 10 | 4 | 11.6 | 0.8 | 604 | 218 |
| MF104ZZ | Galas bola flanged tertutup | 4 | 10 | 4 | 11.6 | 0.8 | 604 | 218 |
| F694 | Buka galas bola flanged | 4 | 11 | 4 | 12.5 | 1 | 814 | 280 |
| F694 2RS | Galas bola flanged tertutup | 4 | 11 | 4 | 12.5 | 1 | 814 | 280 |
| F694ZZ | Galas bola flanged tertutup | 4 | 11 | 4 | 12.5 | 1 | 814 | 280 |
| F604 | Buka galas bola flanged | 4 | 12 | 4 | 13.5 | 1 | 814 | 280 |
| F604 2RS | Galas bola flanged tertutup | 4 | 12 | 5 | 13.5 | 1 | 814 | 280 |
| F604ZZ | Galas bola flanged tertutup | 4 | 12 | 5 | 13.5 | 1 | 814 | 280 |
| F624 | Buka galas bola flanged | 4 | 13 | 5 | 15 | 1 | 1106 | 390 |
| F624 2RS | Galas bola flanged tertutup | 4 | 13 | 5 | 15 | 1 | 1106 | 390 |
| F624ZZ | Galas bola flanged tertutup | 4 | 13 | 5 | 15 | 1 | 1106 | 390 |
| F634 | Buka galas bola flanged | 4 | 16 | 5 | 18 | 1 | 1139 | 418 |
| F634 2RS | Galas bola flanged tertutup | 4 | 16 | 5 | 18 | 1 | 1139 | 418 |
| F634ZZ | Galas bola flanged tertutup | 4 | 16 | 5 | 18 | 1 | 1139 | 418 |
| MF85 | Buka galas bola flanged | 5 | 8 | 2 | 9.2 | 0.6 | 262 | 96 |
| MF85 2RS | Galas bola flanged tertutup | 5 | 8 | 2.5 | 9.2 | 0.6 | 185 | 72 |
| MF85ZZ | Galas bola flanged tertutup | 5 | 8 | 2.5 | 9.2 | 0.6 | 185 | 72 |
| MF95 | Buka galas bola flanged | 5 | 9 | 2.5 | 10.2 | 0.6 | 366 | 135 |
| MF95 2RS | Galas bola flanged tertutup | 5 | 9 | 3 | 10.2 | 0.6 | 366 | 135 |
| MF95ZZ | Galas bola flanged tertutup | 5 | 9 | 3 | 10.2 | 0.6 | 366 | 135 |
| MF105 | Buka galas bola flanged | 5 | 10 | 3 | 11.2 | 0.6 | 366 | 135 |
| MF105 2RS | Galas bola flanged tertutup | 5 | 10 | 4 | 11.6 | 0.8 | 366 | 135 |
| MF105ZZ | Galas bola flanged tertutup | 5 | 10 | 4 | 11.6 | 0.8 | 366 | 135 |
| MF115 2RS | Galas bola flanged tertutup | 5 | 11 | 4 | 12.6 | 0.8 | 609 | 226 |
| MF115ZZ | Beralih bola berbentuk flanged | 5 | 11 | 4 | 12.6 | 0.8 | 609 | 226 |
| MF115 | Buka galas bola flanged | 5 | 11 | 4 | 12.6 | 0.8 | 609 | 226 |
| F685 | Buka galas bola flanged | 5 | 11 | 3 | 12.5 | 0.8 | 609 | 226 |
| F685 2RS | Galas bola flanged tertutup | 5 | 11 | 5 | 12.5 | 1 | 609 | 226 |
| F685ZZ | Galas bola flanged tertutup | 5 | 11 | 5 | 12.5 | 1 | 609 | 226 |
| F695 | Buka galas bola flanged | 5 | 13 | 4 | 15 | 1 | 916 | 346 |
| F695 2RS | Galas bola flanged tertutup | 5 | 13 | 4 | 15 | 1 | 916 | 346 |
| F695ZZ | Galas bola flanged tertutup | 5 | 13 | 4 | 15 | 1 | 916 | 346 |
| F605 | Buka galas bola flanged | 5 | 14 | 5 | 16 | 1 | 1130 | 406 |
| F605 2RS | Galas bola flanged tertutup | 5 | 14 | 5 | 16 | 1 | 1130 | 406 |
| F605ZZ | Galas bola flanged tertutup | 5 | 14 | 5 | 16 | 1 | 1130 | 406 |
| F625 | Buka galas bola flanged | 5 | 16 | 5 | 18 | 1 | 1470 | 540 |
| F625 2RS | Galas bola flanged tertutup | 5 | 16 | 5 | 18 | 1 | 1470 | 540 |
| F625ZZ | Galas bola flanged tertutup | 5 | 16 | 5 | 18 | 1 | 1470 | 540 |
| F635 | Buka galas bola flanged | 5 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F635 2RS | Galas bola flanged tertutup | 5 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F635ZZ | Galas bola flanged tertutup | 5 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| MF106 | Buka galas bola flanged | 6 | 10 | 2.5 | 11.2 | 0.6 | 422 | 174 |
| MF106 2RS | Galas bola flanged tertutup | 6 | 10 | 3 | 11.2 | 0.6 | 422 | 174 |
| MF106ZZ | Galas bola flanged tertutup | 6 | 10 | 3 | 11.2 | 0.6 | 422 | 174 |
| MF126 | Buka galas bola flanged | 6 | 12 | 3 | 13.2 | 0.6 | 609 | 236 |
| MF126 2RS | Galas bola flanged tertutup | 6 | 12 | 4 | 13.6 | 0.8 | 609 | 236 |
| MF126ZZ | Galas bola flanged tertutup | 6 | 12 | 4 | 13.6 | 0.8 | 609 | 236 |
| F686 | Buka galas bola flanged | 6 | 13 | 3.5 | 15 | 1 | 920 | 354 |
| F686 2rs | Galas bola flanged tertutup | 6 | 13 | 5 | 15 | 1.1 | 920 | 354 |
| F686ZZ | Galas bola flanged tertutup | 6 | 13 | 5 | 15 | 1.1 | 920 | 354 |
| F696 | Buka galas bola flanged | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 |
| F696 2rs | Galas bola flanged tertutup | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 |
| F696ZZ | Galas bola flanged tertutup | 6 | 15 | 5 | 17 | 1.2 | 1139 | 418 |
| F606 | Buka galas bola flanged | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 |
| F606 2rs | Galas bola flanged tertutup | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 |
| F606ZZ | Galas bola flanged tertutup | 6 | 17 | 6 | 19 | 1.2 | 1924 | 677 |
| F626 | Buka galas bola flanged | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F626 2rs | Galas bola flanged tertutup | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F626zz | Galas bola flanged tertutup | 6 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| MF117 | Buka galas bola flanged | 7 | 11 | 2.5 | 12.2 | 0.6 | 387 | 162 |
| MF117 2RS | Galas bola flanged tertutup | 7 | 11 | 3 | 12.2 | 0.6 | 387 | 162 |
| MF117ZZ | Galas bola flanged tertutup | 7 | 11 | 3 | 12.2 | 0.6 | 387 | 162 |
| MF137 | Buka galas bola flanged | 7 | 13 | 3 | 14.2 | 0.6 | 460 | 221 |
| MF137 2RS | Galas bola flanged tertutup | 7 | 13 | 4 | 14.6 | 0.8 | 460 | 221 |
| MF137ZZ | Galas bola flanged tertutup | 7 | 13 | 4 | 14.6 | 0.8 | 460 | 221 |
| F687 | Buka galas bola flanged | 7 | 14 | 3.5 | 16 | 1 | 997 | 410 |
| F687 2rs | Galas bola flanged tertutup | 7 | 14 | 5 | 16 | 1.1 | 997 | 410 |
| F687zz | Galas bola flanged tertutup | 7 | 14 | 5 | 16 | 1.1 | 997 | 410 |
| F697 | Buka galas bola flanged | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 |
| F697 2rs | Galas bola flanged tertutup | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 |
| F697zz | Galas bola flanged tertutup | 7 | 17 | 5 | 19 | 1.2 | 1364 | 575 |
| F607 | Buka galas bola flanged | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F607 2RS | Galas bola flanged tertutup | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F607zz | Galas bola flanged tertutup | 7 | 19 | 6 | 22 | 1.5 | 1986 | 717 |
| F627 | Buka galas bola flanged | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 |
| F627 2RS | Galas bola flanged tertutup | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 |
| F627zz | Galas bola flanged tertutup | 7 | 22 | 7 | 25 | 1.5 | 2794 | 1103 |
| MF128 | Buka galas bola flanged | 8 | 12 | 2.5 | 13.2 | 0.6 | 462 | 219 |
| MF128 2RS | Galas bola flanged tertutup | 8 | 12 | 3.5 | 13.6 | 0.8 | 462 | 219 |
| MF128ZZ | Galas bola flanged tertutup | 8 | 12 | 3.5 | 13.6 | 0.8 | 462 | 219 |
| MF148 | Buka galas bola flanged | 8 | 14 | 3.5 | 15.6 | 0.8 | 695 | 309 |
| MF148 2RS | Galas bola flanged tertutup | 8 | 14 | 4 | 15.6 | 0.8 | 695 | 309 |
| MF148ZZ | Galas bola flanged tertutup | 8 | 14 | 4 | 15.6 | 0.8 | 695 | 309 |
| F688 | Buka galas bola flanged | 8 | 16 | 4 | 18 | 1 | 1064 | 474 |
| F688 2RS | Galas bola flanged tertutup | 8 | 16 | 5 | 18 | 1.1 | 1064 | 474 |
| F688zz | Galas bola flanged tertutup | 8 | 16 | 5 | 18 | 1.1 | 1064 | 474 |
| F698 | Buka galas bola flanged | 8 | 19 | 6 | 22 | 1.5 | 1902 | 734 |
| F698 2RS | Galas bola flanged tertutup | 8 | 19 | 6 | 22 | 1.5 | 1902 | 734 |
| F698ZZ | Galas bola flanged tertutup | 8 | 19 | 6 | 22 | 1.5 | 1902 | 734 |
| F608 | Buka galas bola flanged | 8 | 22 | 7 | 25 | 1.5 | 2799 | 1103 |
| F608 2RS | Galas bola flanged tertutup | 8 | 22 | 7 | 25 | 1.5 | 2799 | 1103 |
| F608ZZ | Galas bola flanged tertutup | 8 | 22 | 7 | 25 | 1.5 | 2799 | 1103 |
| F679 | Buka galas bola flanged | 9 | 14 | 3 | 15.5 | 0.8 | 781 | 374 |
| F679 2RS | Galas bola flanged tertutup | 9 | 14 | 4.5 | 15.5 | 0.8 | 781 | 374 |
| F679ZZ | Galas bola flanged tertutup | 9 | 14 | 4.5 | 15.5 | 0.8 | 781 | 374 |
| F689 | Buka galas bola flanged | 9 | 17 | 4 | 19 | 1 | 1128 | 534 |
| F689 2RS | Galas bola flanged tertutup | 9 | 17 | 5 | 19 | 1.1 | 1128 | 534 |
| F689ZZ | Galas bola flanged tertutup | 9 | 17 | 5 | 19 | 1.1 | 1128 | 534 |
| F699 | Buka galas bola flanged | 9 | 20 | 6 | 23 | 1.5 | 2097 | 865 |
| F699 2RS | Galas bola flanged tertutup | 9 | 20 | 6 | 23 | 1.5 | 2097 | 865 |
| F699ZZ | Galas bola flanged tertutup | 9 | 20 | 6 | 23 | 1.5 | 2097 | 865 |
| F609 | Buka galas bola flanged | 9 | 24 | 7 | 27 | 1.5 | 2853 | 1155 |
| F609 2RS | Galas bola flanged tertutup | 9 | 24 | 7 | 27 | 1.5 | 2853 | 1155 |
| F609ZZ | Galas bola flanged tertutup | 9 | 24 | 7 | 27 | 1.5 | 2853 | 1155 |
Tentang Yinin
Aplikasi Industri
Berita dan Maklumat
Hubungi Kami
Perundingan Teknikal
Penyelesaian Tersuai
R&D berterusan
Kawalan Kualiti
Sokongan Teknikal dan Latihan
Respon Pantas
Jika anda mempunyai sebarang perundingan teknikal atau maklum balas, kami akan memberikan anda jawapan yang paling profesional secepat mungkin!
Hubungi Kami
Tel: +86-13916786238
Fax: +86-21-68551629
Email: [email protected]
Add: Kawasan Perindustrian Huangxu, Dantu, Zhenjiang City, Wilayah Jiangsu, China
industri
