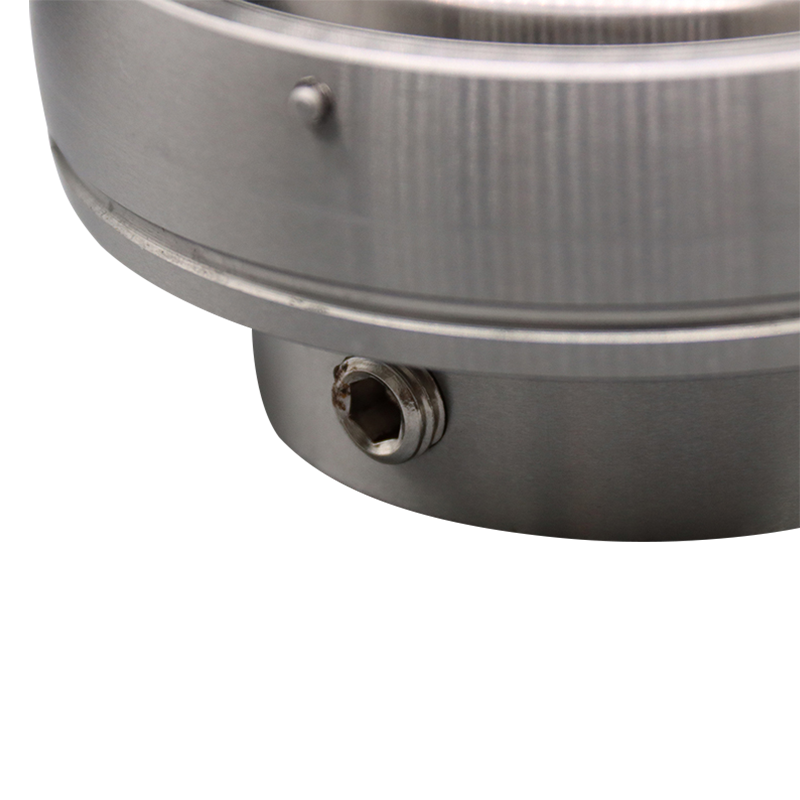

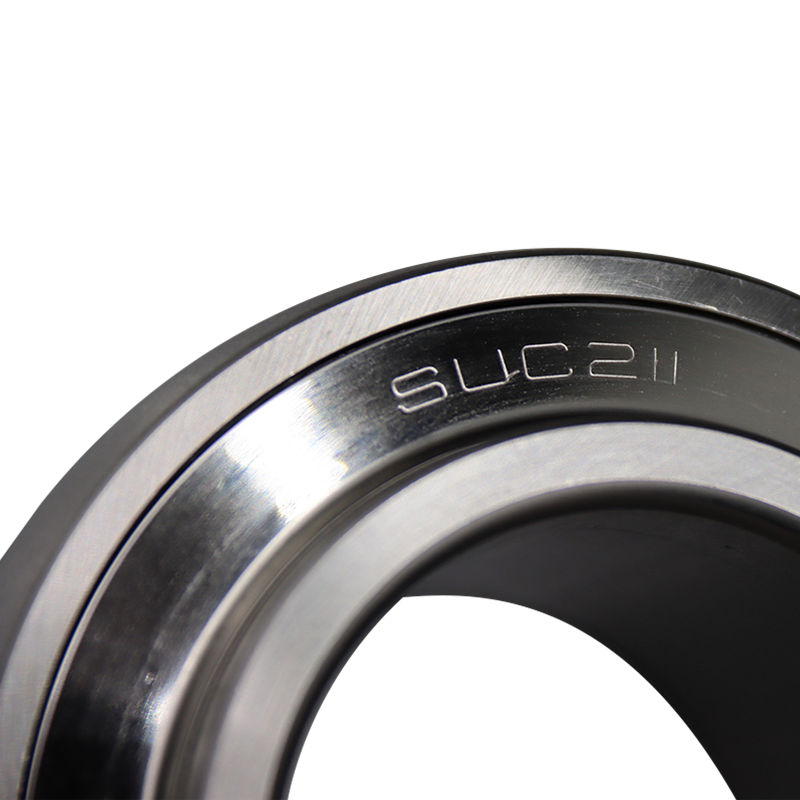

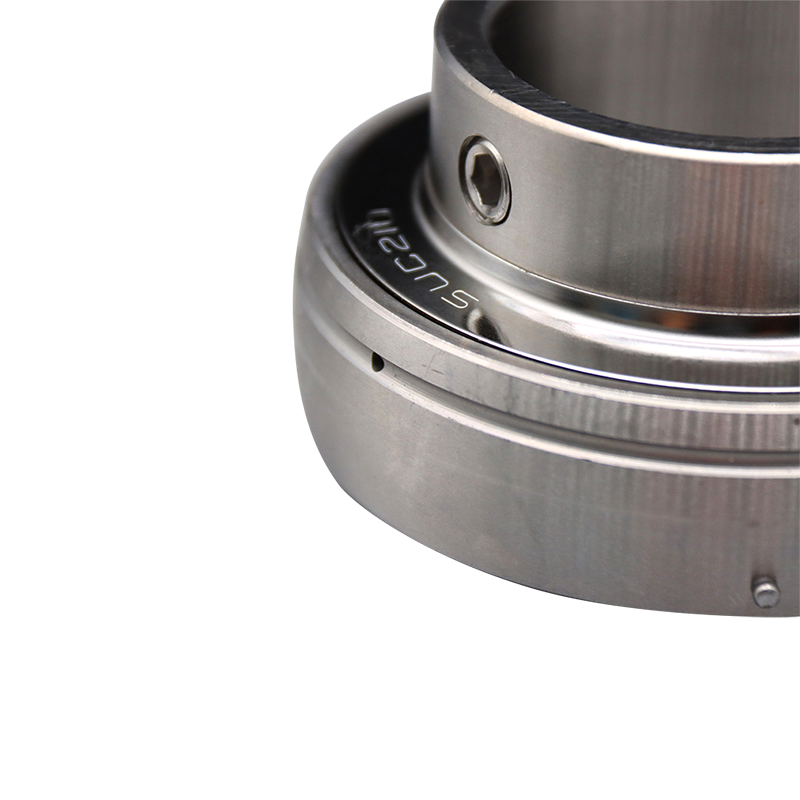

Bearing Masukkan Siri UC200 adalah galas rolling berprestasi tinggi yang digunakan secara meluas dalam peralatan mekanikal. Ciri -ciri reka bentuknya termasuk kemudahan pemasangan dan penyelenggaraan, menjadikannya sesuai untuk pelbagai persekitaran kerja. Siri UC200 biasanya mempunyai struktur perumahan bersepadu yang dapat menahan beban radial yang besar dan beban paksi sambil menyediakan keupayaan anti-fouling yang baik. Keluli berkualiti tinggi digunakan di dalam galas untuk memastikan rintangan haus yang tinggi dan hayat perkhidmatan yang panjang. Siri galas sisipan ini juga terdapat dalam pelbagai model dan saiz untuk memenuhi keperluan aplikasi yang berbeza dan biasanya digunakan dalam jentera pertanian, menyampaikan peralatan dan jentera perindustrian. Di samping itu, galas siri UC200 dilengkapi dengan pelbagai jenis peranti pengedap untuk mencegah kebocoran gris dan pencerobohan bahan pencemar luar, meningkatkan lagi kestabilan kerja dan kebolehpercayaan mereka.
Parameter Produk
| No. | d | Dimensi (mm） | |||||||
| (mm) | (masuk) | D | Bi | Menjadi | n | m | G | ds | |
| UCW201 | 12 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UCW202 | 15 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UCW203 | 17 | 40 | 27.4 | 14 | 11.5 | 15.9 | 4 | M5X0.8 | |
| UC201 | 12 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC201-8 | 12.7 | 0.5 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28UNF |
| UC202 | 15 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC202-10 | 15.875 | 0.625 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28UNF |
| UC203 | 17 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC203-11 | 17.463 | 0.6875 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28UNF |
| UC204-12 | 19.05 | 0.75 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | 1/4-28UNF |
| UC204 | 20 | 47 | 31 | 17 | 12.7 | 18.3 | 5 | M6x1.0 | |
| UC205-14 | 22.225 | 0.875 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28UNF |
| UC205-15 | 23.813 | 15/16 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28UNF |
| UC205 | 25 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | M6x1.0 | |
| UC205-16 | 25.4 | 1 | 52 | 34 | 17 | 14.3 | 19.7 | 5.5 | 1/4-28UNF |
| UC206-18 | 28.575 | 1.125 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28UNF |
| UC206 | 30 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | M6x1.0 | |
| UC206-19 | 30.163 | 1.1875 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28UNF |
| UC206-20 | 31.75 | 1.25 | 62 | 38.1 | 19 | 15.9 | 22.2 | 5.5 | 1/4-28UNF |
| UC207-20 | 31.75 | 1.25 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24UNF |
| UC207-21 | 33.338 | 1.3125 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24UNF |
| UC207-22 | 34.925 | 1.375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24UNF |
| UC207 | 35 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | M8x1.0 | |
| UC207-23 | 36.513 | 1.4375 | 72 | 42.9 | 20 | 17.5 | 25.4 | 6.5 | 5/16-24UNF |
| UC208-24 | 38.1 | 1.5 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24UNF |
| UC208-25 | 39.688 | 1.5625 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | 5/16-24UNF |
| UC208 | 40 | 80 | 49.2 | 21 | 19 | 30.2 | 8 | M8x1.0 | |
| UC209-26 | 41.275 | 1.625 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24UNF |
| UC209-27 | 42.863 | 1.6875 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24UNF |
| UC209-28 | 44.45 | 1.75 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | 5/16-24UNF |
| UC209 | 45 | 85 | 49.2 | 22 | 19 | 30.2 | 8 | M8x1.0 | |
| UC210-30 | 47.625 | 1.875 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210-31 | 49.213 | 1-15/16 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC210 | 50 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | M10X1.25 | |
| UC210-32 | 50.8 | 2 | 90 | 51.6 | 24 | 19 | 32.6 | 9.5 | 3/8-24unf |
| UC211-32 | 50.8 | 2 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211-34 | 53.975 | 2.125 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC211 | 55 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | M10X1.25 | |
| UC211-35 | 55.563 | 2.1875 | 100 | 55.6 | 25 | 22.2 | 33.4 | 10 | 3/8-24unf |
| UC212-36 | 57.15 | 2.25 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212 | 60 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | M10X1.25 | |
| UC212-38 | 60.325 | 2.375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC212-39 | 61.913 | 2.4375 | 110 | 65.1 | 27 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213-40 | 63.5 | 2.5 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | 3/8-24unf |
| UC213 | 65 | 120 | 65.1 | 28 | 25.4 | 39.7 | 10 | M10X1.25 | |
| UC214-44 | 69.85 | 2.75 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | 7/16-20unf |
| UC214 | 70 | 125 | 74.6 | 30 | 30.2 | 44.4 | 12 | M12X1.5 | |
| UC215-47 | 74.613 | 2.9375 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC215 | 75 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | M12X1.5 | |
| UC215-48 | 76.2 | 3 | 130 | 77.8 | 30 | 33.3 | 44.5 | 12 | 7/16-20unf |
| UC216-50 | 79.375 | 3.125 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | 7/16-20unf |
| UC216 | 80 | 140 | 82.6 | 33 | 33.3 | 49.3 | 14 | M12X1.5 | |
| UC217-52 | 82.55 | 3.25 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | 7/16-20unf |
| UC217 | 85 | 150 | 85.7 | 35 | 34.1 | 51.6 | 14 | M12X1.5 | |
| UC218-56 | 88.9 | 3.5 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | 1/2-20unf |
| UC218 | 90 | 160 | 96 | 37 | 39.7 | 56.3 | 14 | M12X1.5 | |
